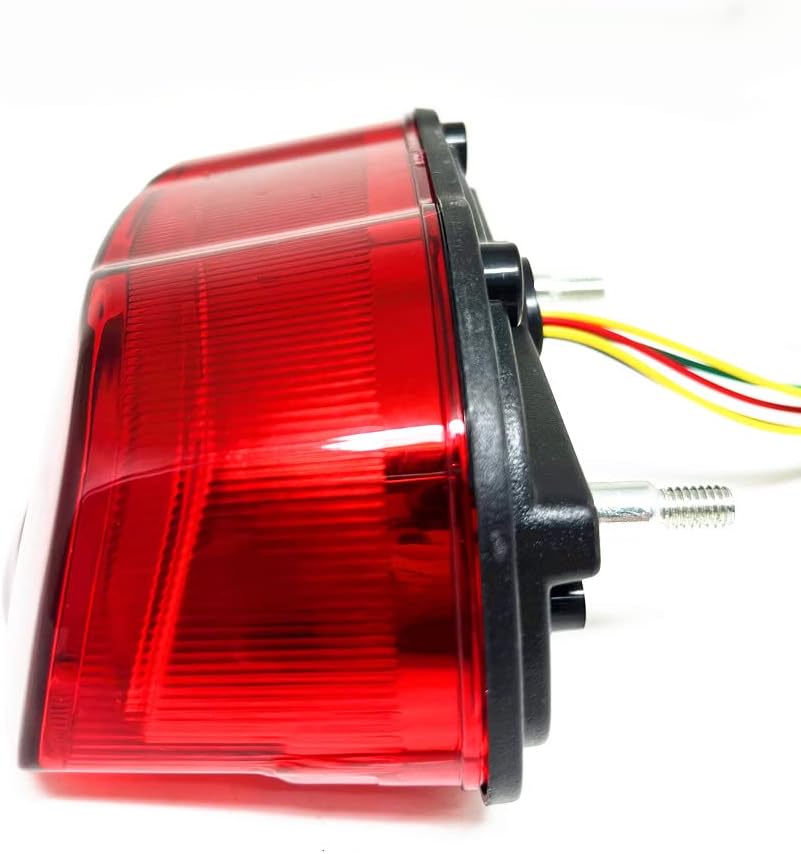

CB650R/CBR650R/CB300R/CB150R LED Tail Lights Turn Signal Integrated Compatible With CB650R CBR650R CB300R CB150R 2019-2024 Motorcycle Integrated Turn Signal (Red)
Product details
| Management number | 231235892 | Release Date | 2026/06/18 | List Price | $12.00 | Model Number | 231235892 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fitment:Compatible with:CB 650R 2019-2024Compatible with:CBR 650R 2019-2024Compatible with:CB 300R 2019-2024Compatible with:CB150R 2019-2024*Please confirm fitment before ordering. -Material:ABS plastic + PC -High quality,Long-lasting,Super bright -Simple to fit the tail,brake,and turning sighals (left & right) are all integrated in one. -Available color for lens:Smoke/Clear/Red -Light color:Red/Yellow -Driving light power: 12V/0.36W -Brake light power: 12V/1.8W -Turn signal power: 12V/1.08W -Easy to install;Without instructions. -If the light work abnormaly,you need to add a resistance. Wiring Diagram applicable to most bikes: Black Wire(Negative), Green Wire(Brake) Red Wire(Running Light) 1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike. 2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike. 3. Repeat the same process for the other side. To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors. if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire.⚠️ IMPORTANT INSTALLATION NOTICE (PLEASE READ BEFORE PURCHASE):Do not install directly. Please test the wires with an external battery before installation to confirm the function of each wire.Improper installation may cause malfunction or damage. During installation, thread locker MUST be used on all screws to prevent loosening due to vibration while riding.This product is intended for users with basic motorcycle modification and wiring knowledge. If you are not experienced, professional installation is strongly recommended.
- ⚠️ IMPORTANT INSTALLATION NOTICE (PLEASE READ BEFORE PURCHASE): *Do not install directly. Please test the wires with an external battery before installation to confirm the function of each wire. *Improper installation may cause malfunction or damage. During installation, thread locker MUST be used on all screws to prevent loosening due to vibration while riding.
- *This product is intended for users with basic motorcycle modification and wiring knowledge. If you are not experienced, professional installation is strongly recommended.
- Compatible with：CB 650R(2019-2024), CBR 650R(2019-2024), CB 300R(2019-2024), CB150R (2019-2024). Please confirm fitment before placing your order.
- Made of ABS plastic + PC, high quality and long-lasting. Super bright LED, integrating tail light, brake light and left/right turn signals in one unit.Light color: Red/Yellow. Meets 12V voltage standard: Driving light (0.36W), Brake light (1.8W), Turn signal (1.08W).
- Usage Standard wiring: Black (Negative), Green (Brake), Red (Running Light). If the light works abnormally, an additional resistor is required (not included).
- Connect one end of the resistor to the ground wire of your motorcycle’s turn signal harness. Connect the other resistor end to both the YELLOW wire of our taillight and the positive turn signal wire of your bike’s harness. Repeat the same steps for the other side. For red connectors: Insert one wire into each channel. Push down the metal pin to pierce and connect both wires.If using resistors, place one resistor end into either channel together with one wire.
| UPC | 797447241423 |
|---|---|
| ASIN | B0BG397XST |
| Color | Red |
| Voltage | 12 Volts |
| Wattage | 1.8 watts |
| Brand Name | GOODELY |
| Lens Color | Smoke |
| Model Year | 2019 |
| Unit Count | 1.0 Count |
| Light Source | LED |
| Manufacturer | GOODELY |
| Model Number | GDL-0921-6 |
| Lens Material | Abs,Plastic |
| Item Type Name | LED Tail Lights Turn Signal Integrated |
| Auto Part Position | Rear |
| Additional Features | LED, Waterproof |
| Automotive Fit Type | Vehicle Specific Fit |
| Included Components | LED Tail Lights Turn Signal Integrated |
| Is Assembly Required | No |
| Manufacturer Part Number | GDL-0921-6 |
| Specific Uses For Product | Tail Lights |
| Compatible with Vehicle Type | Motorcycle |
| Manufacturer Warranty Description | 6 Months |
