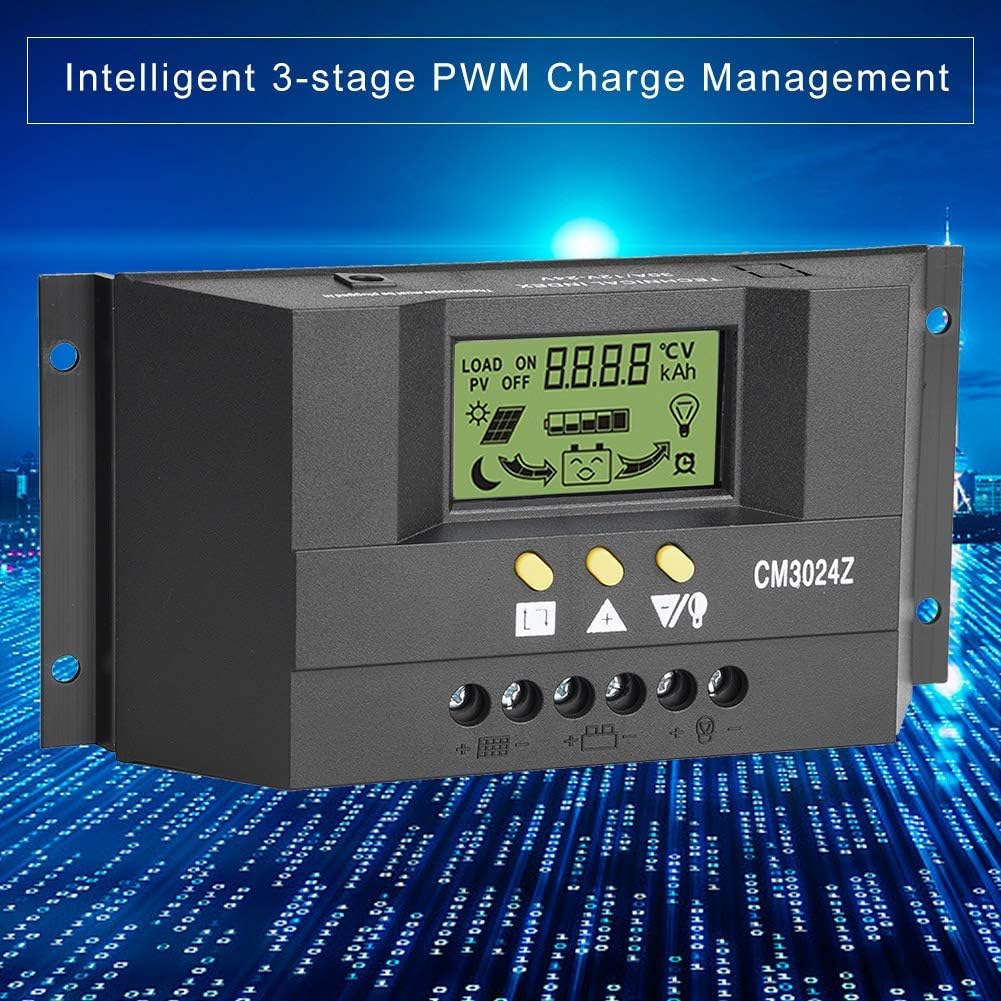

Thincol CM3024Z PWM Intelligent Solar Panel Charge Controller Regulator LCD Display 12V 24V 30A PVC

Features: 1. Automatically identify system voltage of 12V/24V. 2. Wiring terminals has corresponding icon marks for connecting battery, solar panel and DC load. 3. Dual MOS anti-backflow circuit, low heat production. 4. Full 3-stage PWM charge management. 5. Built-in short circuit protection, open circuit protection, reverse connection protection, overcurrent protection. Specification: Model: CM3024Z Max discharge current: 30A Batt voltage: 12V/24V auto Charging Type: PWM Material: PVC Color: Black Size: Approx. 190*90*50mm / 7.5*.3.5*1.9in Weight: Approx. 373g / 13.1oz Package list: 1 * Solar Charge Controller 1 * Manual Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.

• SOLAR CHARGE CONTROLLER: 12V/24V automatic identification charger, -acid battery (lithium battery, Ni-MH battery is not available) solar charge controller, only supports photovoltaic solar panels as a charging source.
• VOLTAGE MATCHING: When the charging battery is 12V, choose the 17-22V solar panel; when the charging battery is 24V, choose the 30-42V solar panel for charging. Charging with mismatched voltage will damage the controller.
• LCD SCREEN + CONTROL FUNCTION: charge and discharge status display, cumulative power generation and discharge query, temperature display. Light control + delay control, adjustable charge and discharge parameters, with power-off memory function.
• PROTECTION FUNCTION: built-in over current, short circuit, open circuit, reverse connection, protection; self-recovery protection, does not damage the controller, and extends the service life.
• NOTE: The power of solar panels should match the battery capacity as much as possible, otherwise it will easily to abnormal charging; the best charging current for the battery is 10%-20% of the battery capacity.
